Hand-drawn geometry settings — hand • mypaintr

human_hand() is the same as hand(), but starts from rougher defaults with bow, wobble, width jitter, and human-style pressure and speed profiles enabled.

Usage

hand(
  seed = NULL,
  bow = 0,
  wobble = 0,
  multi_stroke = 1L,
  width_jitter = 0,
  endpoint_jitter = 0,
  pressure = pressure_flat(),
  speed = speed_flat(),
  xtilt = 0,
  ytilt = 0,
  barrel_rotation = 0
)

human_hand(
  seed = NULL,
  bow = 0.004,
  wobble = 0.004,
  multi_stroke = 1L,
  width_jitter = 0.08,
  endpoint_jitter = 0,
  pressure = pressure_human(),
  speed = speed_human(),
  xtilt = 0,
  ytilt = 0,
  barrel_rotation = 0
)

Arguments

seed: Optional random seed used for repeatable geometry.
bow: Typical bowing of long strokes as a proportion of segment length.
wobble: Low-frequency path wobble as a proportion of segment length.
multi_stroke: Number of overdrawn strokes to use.
width_jitter: Relative variation in line width between overdrawn strokes.
endpoint_jitter: Relative endpoint jitter as a proportion of segment length.
pressure: Pressure profile function, typically created with pressure_flat(), pressure_smooth(), or pressure_human(). A single number is treated as pressure_flat(pressure).
speed: Speed profile function, typically created with speed_flat() or speed_human(). A single positive number is treated as speed_flat(speed). Speed profiles affect mypaint_device() brush rendering only.
xtilt, ytilt: Stylus tilt inputs passed to libmypaint, in its normalized -1 to 1 range.
barrel_rotation: Stylus barrel rotation, in degrees.

Value

An object describing how rough geometry should be generated.

Details

hand() defaults to plain, base-R-like geometry with no bowing, wobble, or jitter and flat pressure and speed. human_hand() has different, more human-like defaults, including pressure_human() and speed_human().

Pressure and speed profile functions are called with t, turn, and length, where length is the total stroke length in device units.

The speed, xtilt, ytilt, and barrel_rotation arguments affect only brush rendering on mypaint_device(). They are ignored by standard graphics devices.

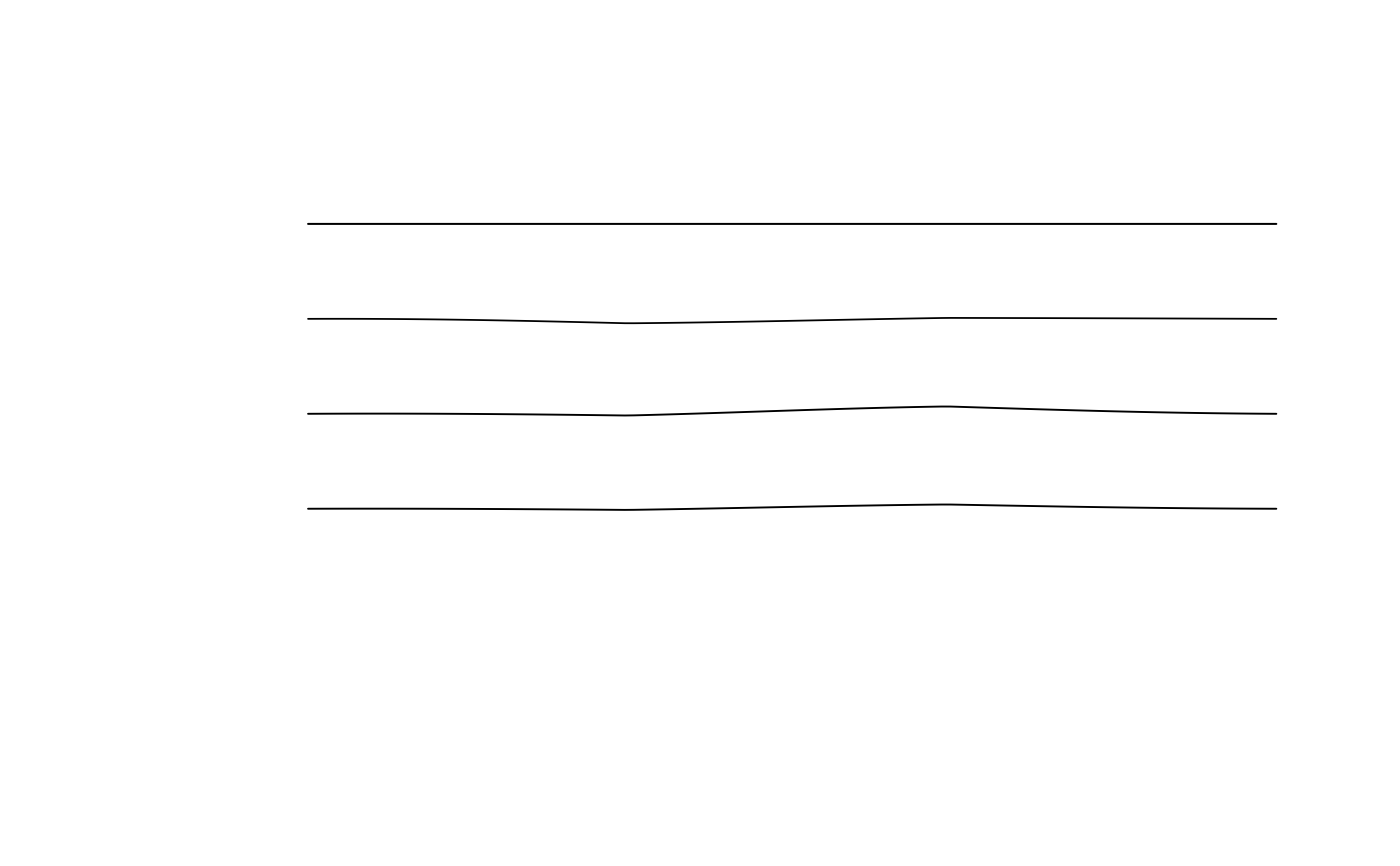

Examples

plot.new()
plot.window(c(0, 10), c(0, 10))
draw_rough_lines(c(0, 10), c(8, 8), lwd = 4, hand = hand())
draw_rough_lines(c(0, 10), c(6, 6), lwd = 4, hand = human_hand())
draw_rough_lines(c(0, 10), c(4, 4), lwd = 4,
                 hand = human_hand(seed = 1,
                   bow = 0.02, wobble = 0.01))
draw_rough_lines(c(0, 10), c(2, 2), lwd = 4,
                 hand = human_hand(seed = 1,
                   pressure = pressure_smooth(0.7, taper = 0.5)))
draw_rough_lines(c(0, 10), c(1, 1), lwd = 4,
                 hand = human_hand(seed = 1,
                   pressure = pressure_human()))
