Performance Benchmarks

performance.Rmd

Overview

This vignette compares the runtime of a few core operations in base R and Rmlx.

library(Rmlx)
#>
#> Attaching package: 'Rmlx'
#> The following object is masked from 'package:stats':
#>
#>     fft
#> The following objects are masked from 'package:base':
#>
#>     chol2inv, colMeans, colSums, diag, outer, rowMeans, rowSums, svd
library(bench)
library(dplyr)
#>
#> Attaching package: 'dplyr'
#> The following objects are masked from 'package:stats':
#>
#>     filter, lag
#> The following objects are masked from 'package:base':
#>
#>     intersect, setdiff, setequal, union
library(ggplot2)

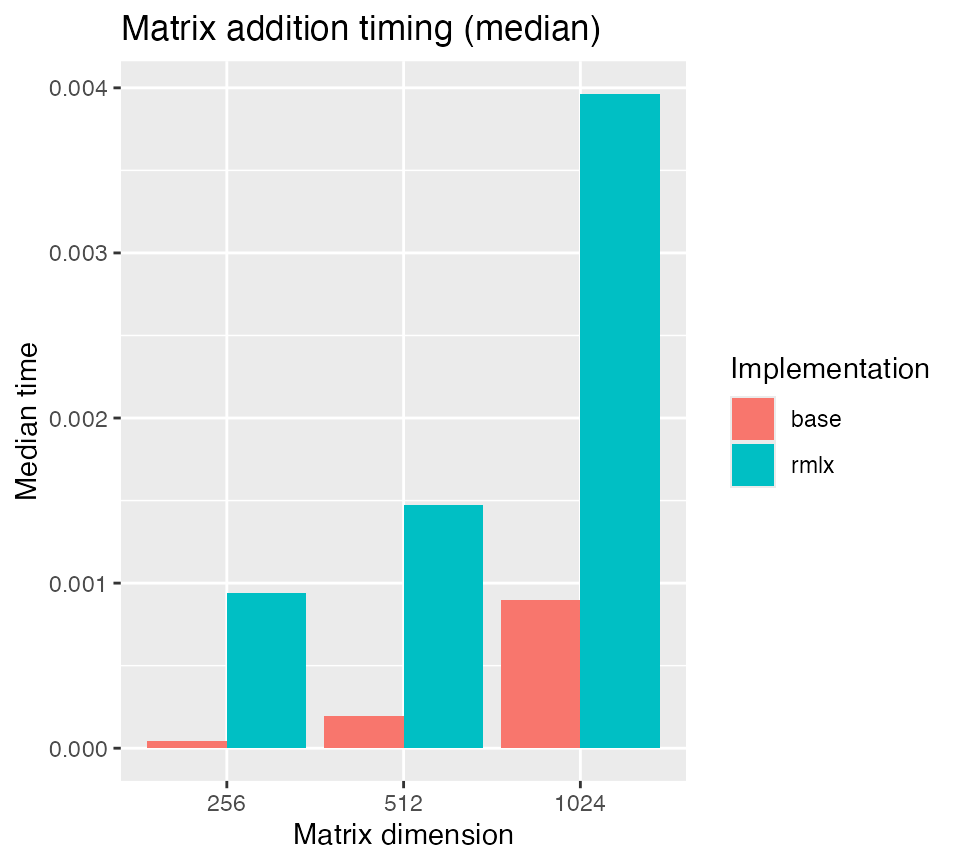

Matrix addition

mat_sizes <- c(256, 512, 1024)
add_results <- bind_rows(lapply(mat_sizes, function(n) {
  A_r <- matrix(runif(n * n), n, n)
  B_r <- matrix(runif(n * n), n, n)
  A_mlx <- as_mlx(A_r)
  B_mlx <- as_mlx(B_r)

  mb <- bench::mark(
    base = { A_r + B_r },
    rmlx = { as.matrix(A_mlx + B_mlx) },
    iterations = 5,
    check = \(x, y) all.equal(x, y, tolerance = 1e-6)
  )
  mb$size <- n
  mb
}))

ggplot(add_results, aes(x = factor(size), y = as.numeric(median),
                        fill = as.character(expression))) +
  geom_col(position = "dodge") +
  labs(
    title = "Matrix addition timing (median)",
    x = "Matrix dimension",
    y = "Median time",
    fill = "Implementation"
  )

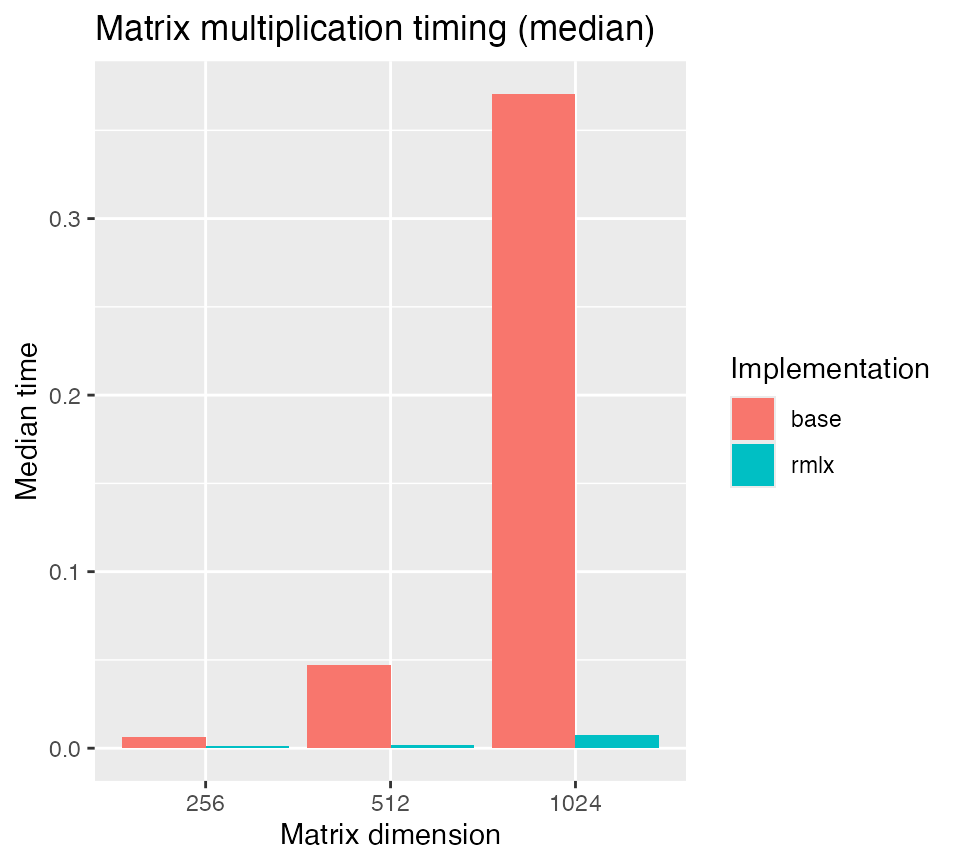

Matrix multiplication

matmul_results <- bind_rows(lapply(mat_sizes, function(n) {
  A_r <- matrix(runif(n * n), n, n)
  B_r <- matrix(runif(n * n), n, n)
  A_mlx <- as_mlx(A_r)
  B_mlx <- as_mlx(B_r)

  mb <- bench::mark(
    base = { A_r %*% B_r },
    rmlx = { as.matrix(A_mlx %*% B_mlx) },
    iterations = 3,
    check = \(x, y) all.equal(x, y, tolerance = 1e-6)
  )
  mb$size <- n
  mb
}))

ggplot(matmul_results, aes(x = factor(size), y = as.numeric(median),
                        fill = as.character(expression))) +
  geom_col(position = "dodge") +
  labs(
    title = "Matrix multiplication timing (median)",
    x = "Matrix dimension",
    y = "Median time",
    fill = "Implementation"
  )

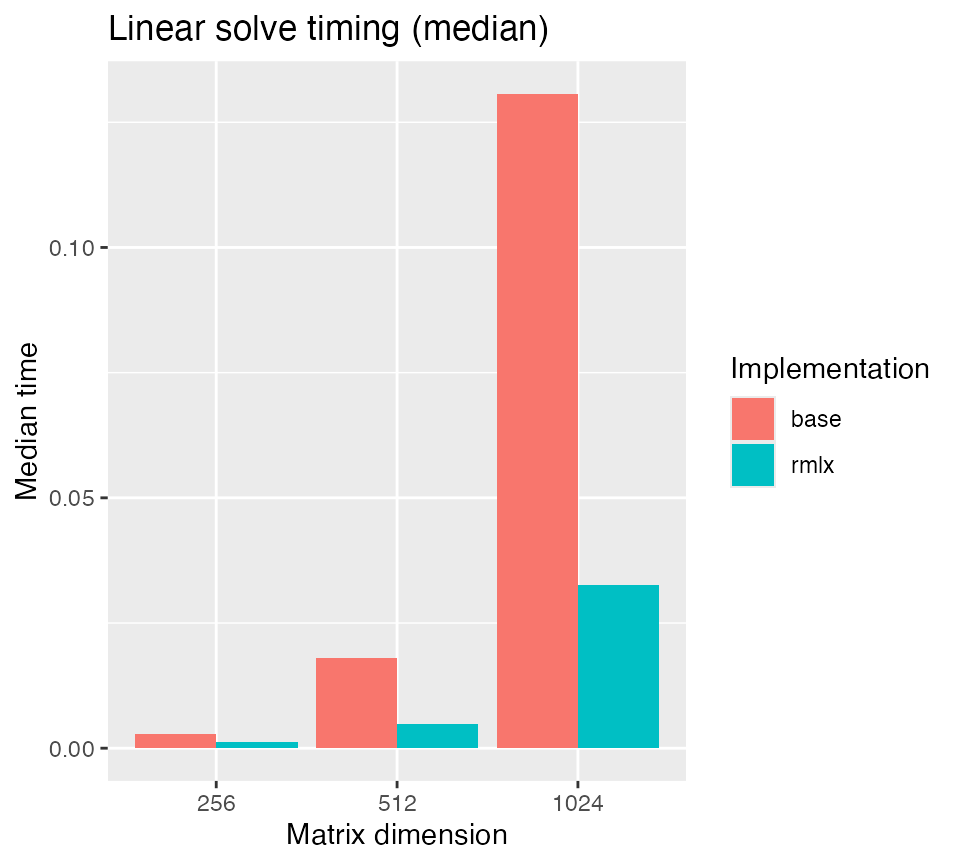

Linear system solves

solve_results <- bind_rows(lapply(mat_sizes, function(n) {
  A_r <- matrix(rnorm(n * n), n, n)
  A_r <- crossprod(A_r) + diag(n) * 1e-3
  b_r <- matrix(rnorm(n), n, 1)
  A_mlx <- as_mlx(A_r)
  b_mlx <- as_mlx(b_r)

  base_sol <- solve(A_r, b_r)
  mlx_sol <- as.matrix(solve(A_mlx, b_mlx))
  stopifnot(
    max(abs(A_r %*% base_sol - b_r)) < 1e-8,
    max(abs(A_r %*% mlx_sol - b_r)) < 5e-1
  )

  mb <- bench::mark(
    base = { solve(A_r, b_r) },
    rmlx = { as.matrix(solve(A_mlx, b_mlx)) },
    iterations = 3,
    check = FALSE
  )
  mb$size <- n
  mb
}))

ggplot(solve_results, aes(x = factor(size), y = as.numeric(median),
                        fill = as.character(expression))) +
  geom_col(position = "dodge") +
  labs(
    title = "Linear solve timing (median)",
    x = "Matrix dimension",
    y = "Median time",
    fill = "Implementation"
  )
