Zigzag fill pattern

Usage

zigzag(angle = 45, density = 6, clip = TRUE, padding = 0)

Arguments

angle: Base hatch angle in degrees.
density: Approximate line density in lines per inch. Larger values give denser fills.
clip: When TRUE, zigzag endpoints stay on the shape boundary to reduce overshoot.
padding: Inset from the polygon edge in inches. Positive values leave a small gap between the fill pattern and the boundary.

Value

A fill-pattern object for draw_rough_*() helpers and mypaint geoms.

See also

Other fill patterns: crosshatch(), hatch(), jumble()

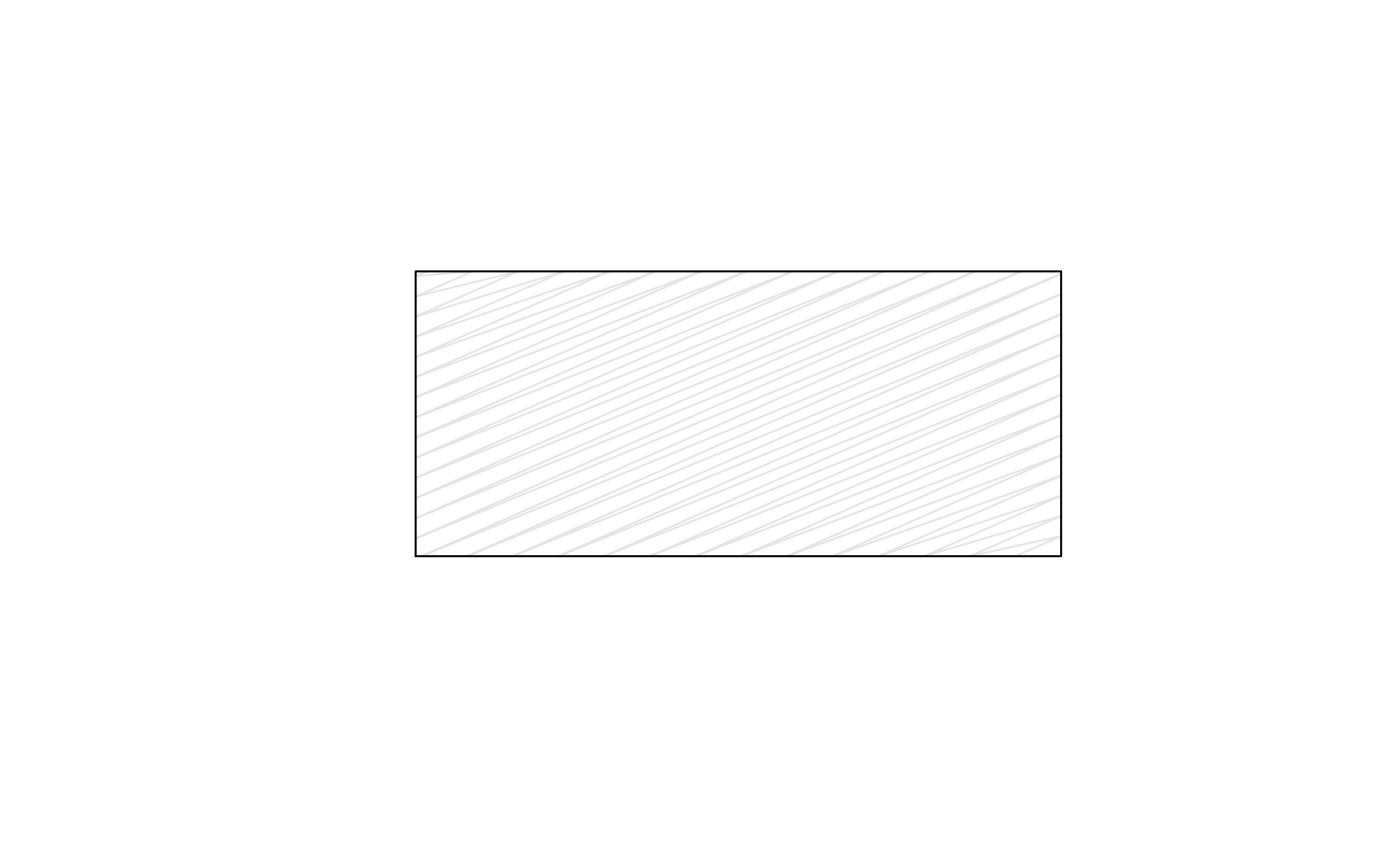

Examples

plot.new()
plot.window(xlim = c(0, 10), ylim = c(0, 10))
draw_rough_rect(2, 2, 8, 8, col = "grey90", fill_pattern = zigzag(density = 7))
