Compute or draw a rough rectangle — rough_rect • mypaintr

Compute or draw a rough rectangle

Usage

rough_rect(x0, y0, x1, y1, hand = NULL)

draw_rough_rect(
  x0,
  y0,
  x1,
  y1,
  hand = NULL,
  col = NA,
  border = graphics::par("fg"),
  fill_pattern = NULL,
  ...
)

Arguments

x0, y0: Rectangle corner.
x1, y1: Opposite rectangle corner.
hand: Hand-drawn geometry settings created with hand().
col: Fill colour. When visible and fill_pattern is NULL, a solid fill is drawn.
border: Border colour.
fill_pattern: Optional fill pattern created with hatch(), crosshatch(), zigzag(), or jumble().
...: Graphics parameters passed to graphics::lines().

Value

A list with x and y components containing a roughened closed outline suitable for plotting with graphics::lines().

See also

Other rough drawing helpers: rough_arrows(), rough_lines(), rough_points(), rough_polygons(), rough_polypath(), rough_segments()

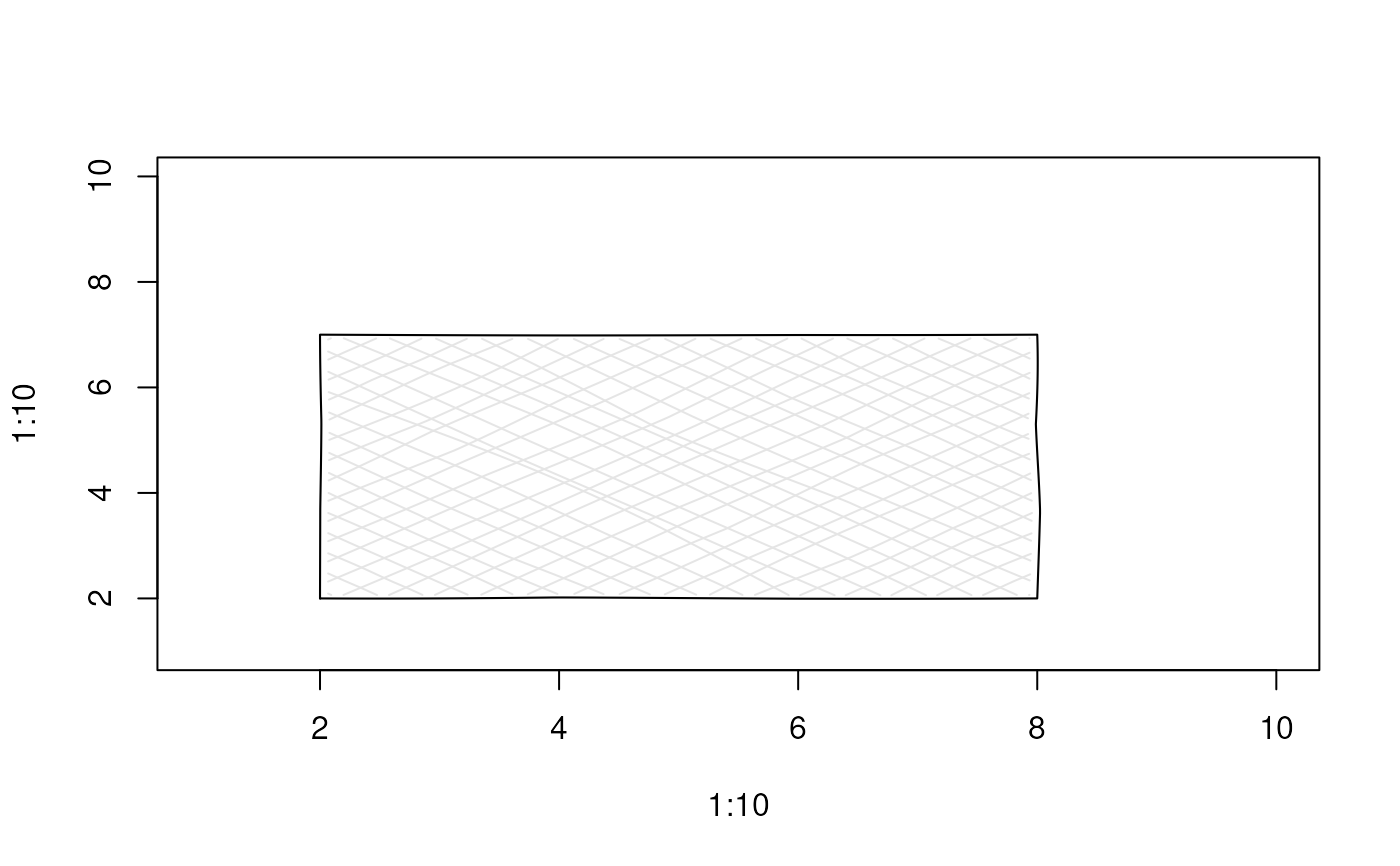

Examples

plot(1:10, 1:10, type = "n")
draw_rough_rect(2, 2, 8, 7,
                hand = human_hand(),
                col = "grey90",
                fill_pattern = crosshatch(padding = 0.05))
