Draw rough, brush-rendered columns in ggplot2 — geom_mypaint

This geom owns both the bar outline and the hatch fill, so the shading lines follow the same rough outline rather than the underlying true rectangle.

Usage

geom_mypaint_col(
  mapping = NULL,
  data = NULL,
  position = "stack",
  ...,
  just = 0.5,
  lineend = "butt",
  linejoin = "mitre",
  na.rm = FALSE,
  show.legend = NA,
  inherit.aes = TRUE,
  fill_pattern = NULL,
  brush = NULL,
  fill_brush = NULL,
  hand = NULL,
  stroke_hand = hand,
  fill_hand = hand,
  auto_solid_bg = NULL
)

Arguments

mapping, data, position, just, lineend, linejoin, na.rm, show.legend, inherit.aes: As for ggplot2::geom_col().
...: Other arguments passed to ggplot2::layer().
fill_pattern: Optional fill pattern created with hatch(), crosshatch(), zigzag(), or jumble().
brush: Stroke brush specification created with tweak_brush(), an installed mypaint brush name, .myb file path, JSON brush string, or NULL for solid borders.
fill_brush: Fill brush specification created with tweak_brush(), an installed mypaint brush name, .myb file path, JSON brush string, or NULL for solid fills.
hand: Optional hand-drawn geometry applied to both outline and hatch by default.
stroke_hand: Optional hand-drawn geometry for the outline.
fill_hand: Optional hand-drawn geometry for the hatch strokes.
auto_solid_bg: Reserved for future parity with device-level style controls.

Value

A ggplot layer.

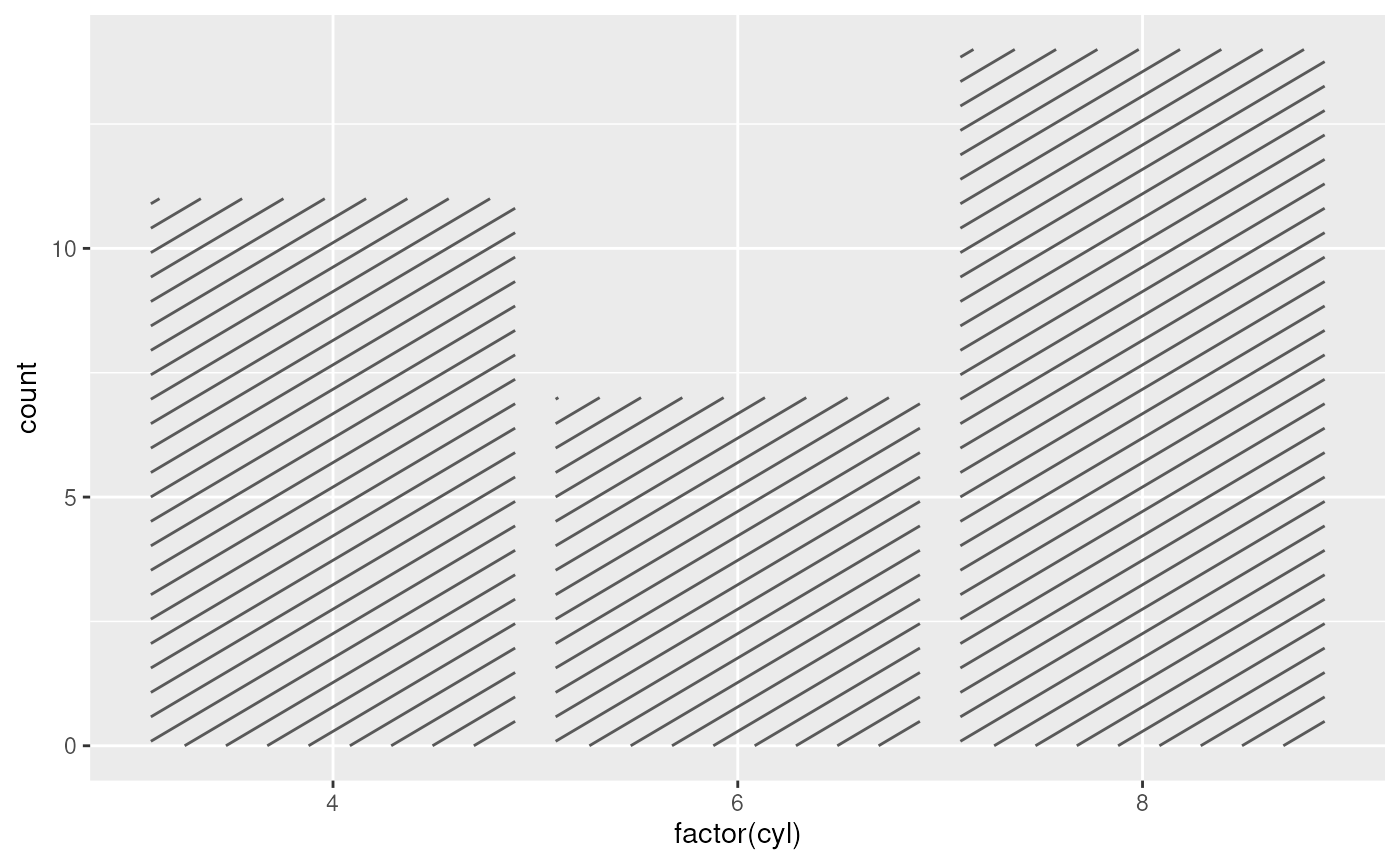

Examples

if (requireNamespace("ggplot2", quietly = TRUE)) {
  ggplot2::ggplot(mtcars, ggplot2::aes(factor(cyl))) +
    geom_mypaint_bar(fill_pattern = hatch())
}
